Wall Mounted Power Distribution Switchboard Electrical Distribution Panel Custom Size

Model Number : HIP789275897

Certification : ISO9001，CCC

Place of Origin : China

MOQ : 10

Payment Terms : T/T,Western Union

Delivery Time : 20 Days

Packaging Details : Carton

Shape : Rectangular

Ventilation : Yes

Size : Customizable

Waterproof : Yes

Weight : Customizable

Usage : Electrical Equipment Storage

Corrosion Resistance : Yes

Material : Metal

Installation : Wall mounted

Lock Type : Key Lock

Number Of Doors : 1 or 2

Fireproof : No

Color : Grey / Others

Price : USD28-68889

Contact Now

Wall Mounted Power Distribution Switchboard Compact & Modular Design

Product Specifications

Attribute	Value
Shape	Rectangular
Ventilation	Yes
Size	Customizable
Waterproof	Yes
Weight	Customizable
Usage	Electrical Equipment Storage
Corrosion Resistance	Yes
Material	Metal
Installation	Wall mounted
Lock Type	Key Lock
Number Of Doors	1 or 2
Fireproof	No
Color	Grey / Others

Product Description

This wall-mounted power distribution switchboard features a compact, modular design suitable for various industrial applications:

Industrial Control Cabinets: Designed for equipment with internal heating components (PLCs, frequency converters). Ventilation holes enable air convection for effective heat dissipation, preventing component aging.
Outdoor Distribution Boxes: Ideal for high-temperature environments, helping dissipate heat from electrical components to maintain stable operation.
Data Communication Equipment Cabinets: Suitable for network devices (routers, switches) with ventilation holes that work with fans to create efficient cooling channels.
Motor Control Boxes: Effectively reduces internal temperature to prevent frequent triggering of motor overload protection.

Standard Dimensions (mm)

Width (W)	Height (H)	Depth (D)
250	300	200
300	400	200
400	500	200
500	600	200
600	800	200
800	1000	200

Available Materials

Galvanized Sheet / Cold Rolled Steel / Stainless Steel

Customization Options

Core Customizations

Enclosure:
- Standard: Powder-coated steel (IP55)
- Harsh environments: Stainless steel (SS304/316, IP66)
Electrical:
- Current rating: Up to 630A (copper busbars)
- Protection: MCCB/ACB + surge protection (50kA)
Smart Features:
- Basic: Energy metering (Class 1.0)
- Advanced: IoT gateway (4G/Modbus)

Optional Upgrades

Mounting: Reversible door, flush/surface mount
Climate: Heating/cooling kits (-40°C to +70°C)
Safety: ATEX/IECEx (Zone 2), arc-flash barriers

Product Tags:

wall mounted power distribution switchboard

custom size power distribution switchboard

electrical distribution panel custom size

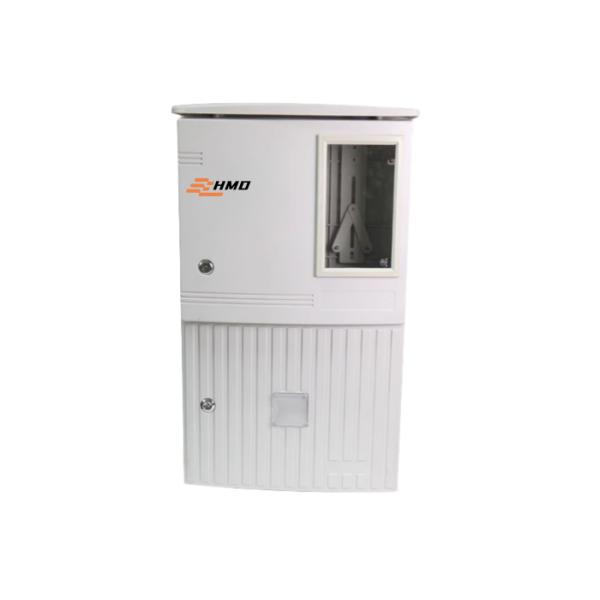

Wall Mounted Power Distribution Switchboard Electrical Distribution Panel Custom Size Images
