SIEMENS SMART Series 700 IE V4 HMI 7 inch 6AV6648-0DC11-3AX0

Model Number : Siemens 6AV6648-0DC11-3AX0

Certification : CE

Place of Origin : Europe

MOQ : 10

Payment Terms : Western Union,T/T

Delivery Time : 10 days

Packaging Details : Carton

Price : USD28-68889

Contact Now

SIEMENS SMART Series 700 IE V4 HMI 7 inch 6AV6648-0DC11-3AX0
Key Features
  • 7-inch and 10-inch widescreen sizes with cabinet and panel mounting options
  • High-brightness display with 1024×600 resolution and 16M colors (LED backlight)
  • Integrated Ethernet port for communication with S7-200 SMART PLCs and LOGO!
  • RS422/485 self-adaptive serial port compatible with multiple PLC brands
  • Fanless design for enhanced performance in harsh environments
  • Supports S7 Ethernet and Modbus RTU protocol (max baud rate 187.5K)
  • Advanced data logging in both tabular and chart formats
  • Diagnostic function for S7-200 SMART PLC system information display
  • Enhanced recipe function with increased variable capacity
  • Integrated ProSave maintenance tool
Technical Specifications
Category Parameter SMART 700 IE V4 SMART 1000 IE V4
Device Display Size (Inch) 7-inch widescreen 10.1-inch widescreen
Cutout Dimensions W×H (mm) 192×138 259×201
Front Panel Dimensions W×H (mm) 209×155 276×218
Display Type 800×480 pixels 1024×600 pixels
Color 16M 16M
Backlight Lifetime 250 cd/m², max 20,000 hours 250 cd/m², max 20,000 hours
Communication Serial Communication 1×RS422/485, isolated, max 187.5 Kbits/s
Ethernet Interface 1×RJ45, 10/100 Mbits
USB USB 2.0 host (supports U disk, mouse, keyboard, Hub)
Environmental Operating Temperature -20°C ~ 60°C
Maximum Relative Humidity 90% (non-condensing)
Vibration Resistance 15g / 11 ms
Front Panel Protection IP65
Back Panel Protection IP20
Software & Compatibility
Configuration Software

WinCC Flexible SMART V4

Compatible PLCs
  • Siemens: S7-200 / S7-200 SMART / LOGO!
  • Third-party: Standard Modbus RTU devices, Mitsubishi (FX), Modicon (Modbus RTU), Omron (Hostlink/Multilink)
System Capabilities
  • Variables: 800
  • Screens (Power Loss Retention): 150
  • Alarm Buffering: 256
  • Recipes: 50×100
  • Trend Curves: Supported
  • Diagnostic Views: Supported
Certifications

CE, UKCA, RoHS compliant


Product Tags:

SIEMENS SMART HMI 7 inch



SMART Series 700 IE V4 HMI



7 inch HMI with warranty


Quality SIEMENS SMART Series 700 IE V4 HMI 7 inch 6AV6648-0DC11-3AX0 for sale

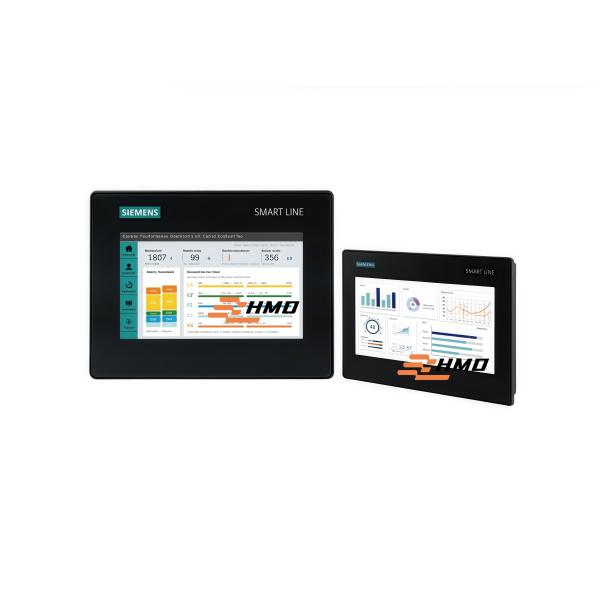

SIEMENS SMART Series 700 IE V4 HMI 7 inch 6AV6648-0DC11-3AX0 Images
